Denpo | Accessories Denpo-Lat-T-17.5 Latch Template For Doors 17

Description

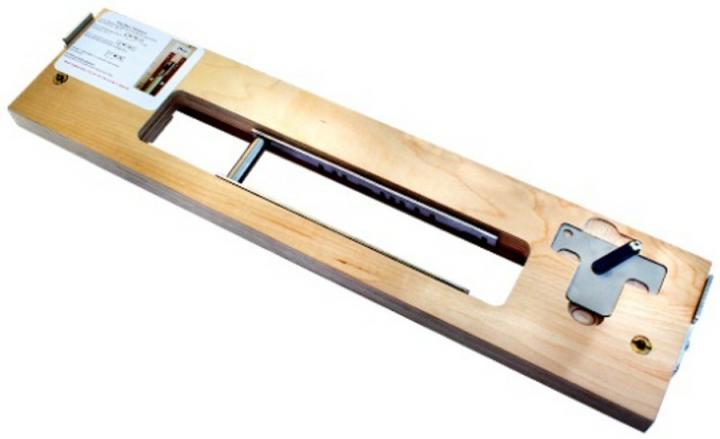

Latch Template Jig This innovative Latch Template allows an individual to do face mortise cut about any standard shape and size. it is a precision instrument that saves time, eliminates costly errors and provides a professional quality job. these template provide fourteen length sizes by simply moving the Adjustment Pin up or down according to length. 2-1/4, 3-7/8, 4, 4-1/4, 4-1/2, 5-1/2, 5-3/4, 6, 6-3/8, 6-1/2, 6-3/4, 8 and 9-1/4in Five different width sizes are available by adjusting the red guide stops in or out as needed for eider. 3/4, 7/8 1, 1-1/8 and 1-1/4in. This unique template is made of 3/4in Russian Baltic Birch Plywood 18mm V2SSMG 13 ply. 6/32 machine screws on the hinge guides are held by a metal insert into the wood base. Use template guide 17/32 I.D by 5/8 O.D with 1/2 router bit.
