DEWALT | Power Tools Dew-Dce310D2 20V Max Compact Died Crimping Tool Kit

Description

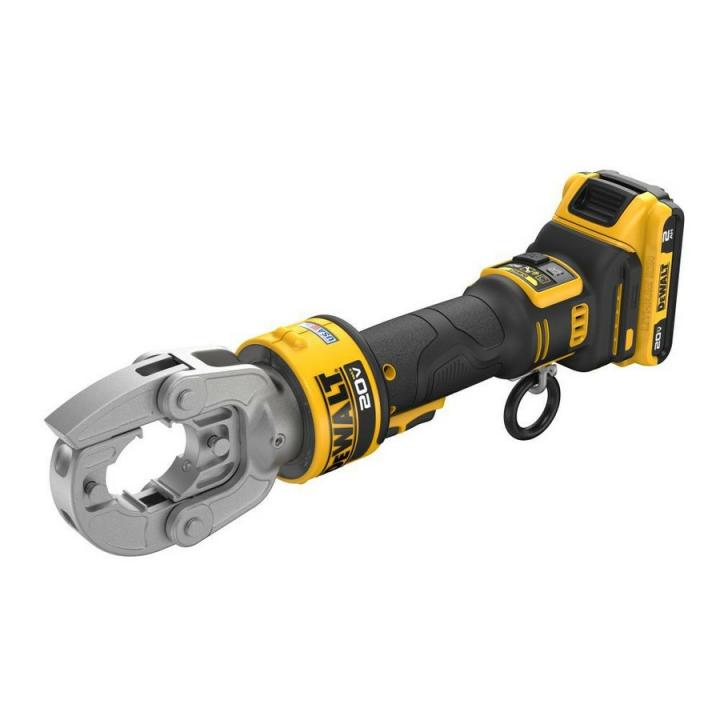

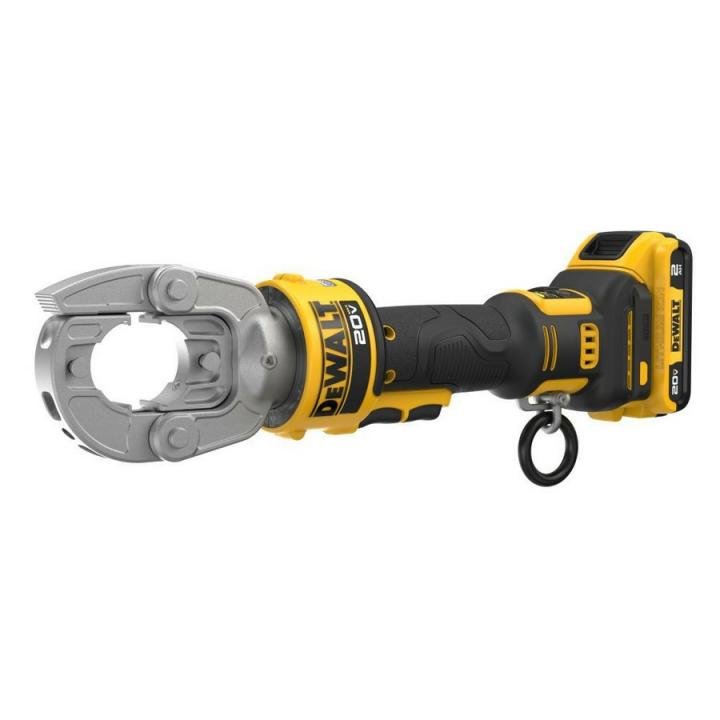

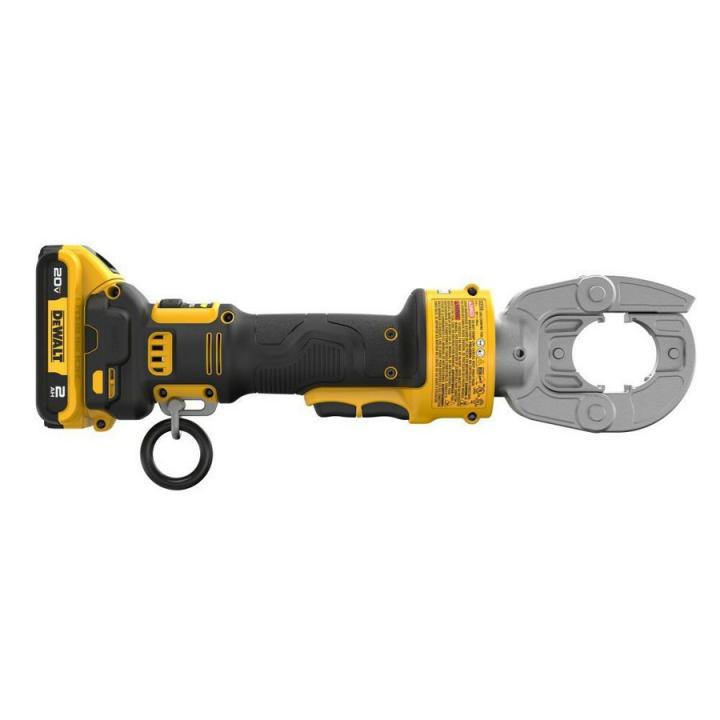

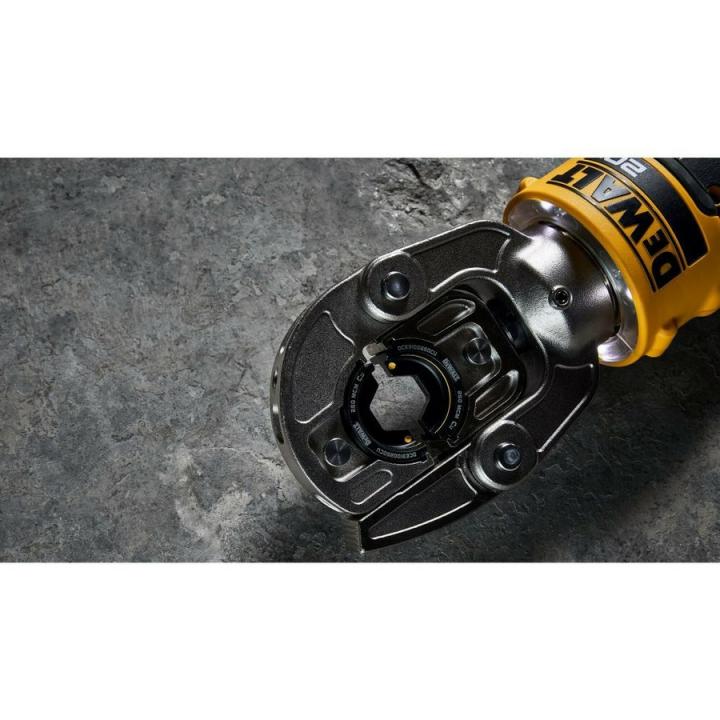

The DEWALT Compact Died Crimping Tool (DCE310) produces UL Classified crimps using compatible connectors from leading manufacturers (see user manual for compliant chart of dies and connectors). The tool accepts DEWALT U-Type dies (sold separately) and has a capacity from #8 – 600 MCM Cu / #8 – 350 MCM Al. A 180 pivoting head and inline body allows the crimper to maneuver into tight spaces while also allowing for one-handed operation. The tool features Crimp Connect software, an onboard intelligence system integrated into the tool that provides detailed reports of successfully completed cycles by the tool, as well as tool calibration and service history. An integrated LED interface is used to communicate power on/off, cycle completion, and if recalibration or service is needed. A bright LED ring helps to illuminate the crimping area when working in dark spaces. The tool also includes a shoulder strap for convenience when transporting around the jobsite. Features 600 MCM Cu / 350 MCM Al crimping capacity for copper and aluminum cable Accepts DEWALT U-Type Dies and completes UL Classified Crimps with leading manufacturers’ connectors (sold separately) Crimp Connect software provides detailed reports of work done 180 head rotation to access tight spaces Easily accessible manual release trigger to allow tool re-alignment mid-crimp Bright LED ring to illuminate work area Shoulder strap and connection ring for portability Asset Management on the Jobsite: Chip pocket accepts Tool Connect Chip and connects with Tool Connect Site Manager app for seamless worksite organization (DCE042 included)
