Festool | Power Tools Fes-576423 Domino Joiner Df 500 Q-Set

Description

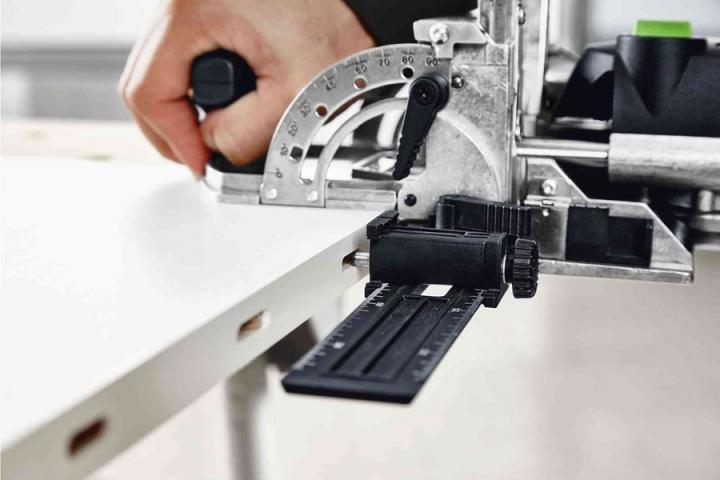

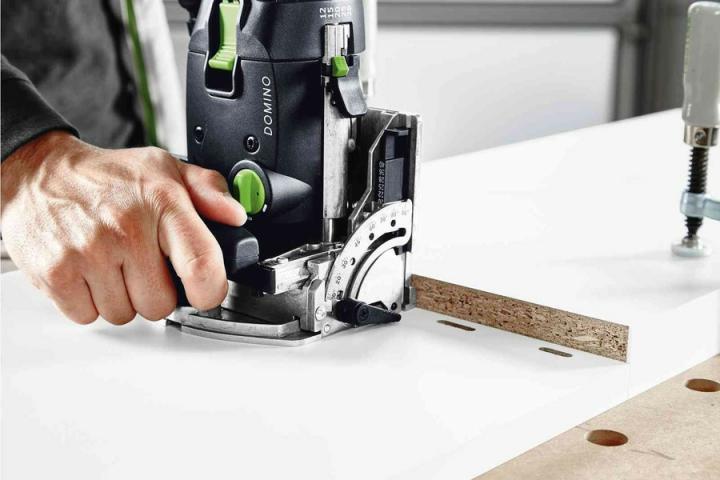

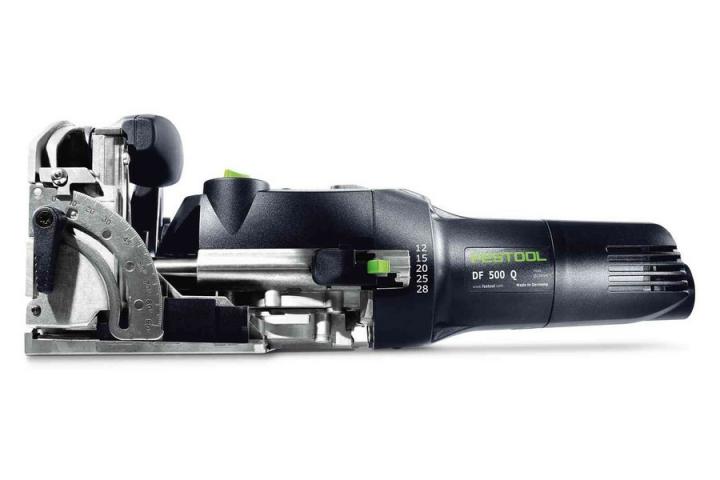

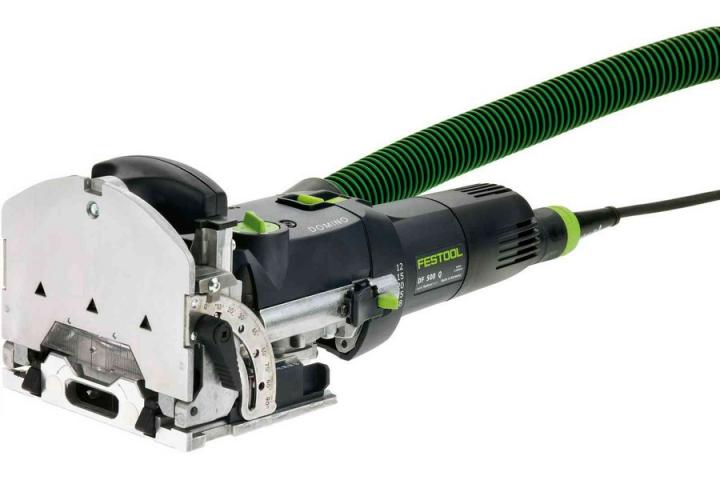

DOMINO Joiner DF 500 Q Set (including trim stop and cross stop) for fast, easy and strong mortise and tenon joining Features Mortise width adjustment with the turn of a dial allows for easier alignment when joining panels. Pivoting Fence allows you to create angled mortises from 0-90 with positive stops at 22.5, 45, 67.5. Includes Cross Stop DOMINO DF 500 7/32in (5mm) Cutter Open Ended Spanner, WAF 8 Support Bracket Systainer SYS3 M 187 Trim Stop Specifications Max. routing depth: 1-1/16in (28 mm) Dust extraction connection dia.: 1-1/16in (27 mm) Weight: 7.05 lbs (3.2 kg) Routing height adjustment: 1/8in (5 mm) – 1-3/16in (30 mm) DOMINO slot cutter dia.: 3/16in (4 mm)/1/8in (5 mm)/1/4in (6 mm)/5/16in (8 mm)/3/8in (10 mm) Power consumption: 420 watt Depth stop for routing depth: 12, 15, 20, 25, 28 mm Patented routing principleThe spiral cutter rotates and oscillates to create perfect mortises. Mortise Width AdjustmentAdjusting the width of the mortise allows for easier alignment when joining panels. PositioningWith an adjustable fence angle, retractable stop flaps, adjustable cutter height with step gauge, and precise mortise depth stop, the DOMINO joiner enables precise mortise placement and spacing. Pivoting fenceFence creates angled mortises from 0-90 with positive stops at 22.5, 45, 67.5. Depth ControlQuick, precise adjustment for five different mortising depths, relative to the size of the tenon required for the application. Stepped Height Stop7 different step positions for different material thicknesses for fast and easy fence height adjustment. Dust extractionYour mortises are clean and ready for glue when the DOMINO is used in combination with a dust extractor. Proper dust extraction greatly extends cutter life. Carbide Tip Spiral BitDurable, long-lasting bit withstands 5,000-14,000 joints depending on material. Rapid Bit ChangeMeans you can change a bit in under 30 seconds to match desired tenon size.
